ECX-3100 / 3200 / 3200MX

Now updated to support Intel 14th gen Raptor Lake-S Refresh. Still compatible with gen 13th and 12th processor families.

Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) with Intel® R680E Chipset, Fanless, -40°C to 75°C operating temperature, 4 X-coded M12 2.5G PoE+ LAN , 6 USB 3.2, 1 USB Type-C supporting up to 20Gbps data rate, SIM sockets supporting 5G/WiFi/4G/3G/LTE/GPRS/UMTS mobile availability, 1 PCIe expansion for versatile configurations, smart manageability, 9V to 50V power input, software ignition power control, and trusted reliability, Vecow ECX-3200/3100 Series Workstation-grade Expandable Fanless Embedded System is your ideal choice for Machine Vision, Robot Waiter, Rolling Stock, Smart Retail, Vehicle Computing, AMR, and any AIoT/Industry 4.0 applications.

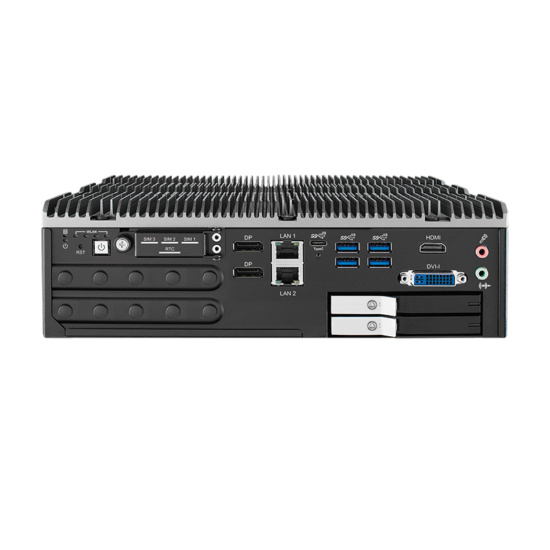

All 3 models have the same Front configuration with 2x SSD Trays, but different I/O configurations on the backside.

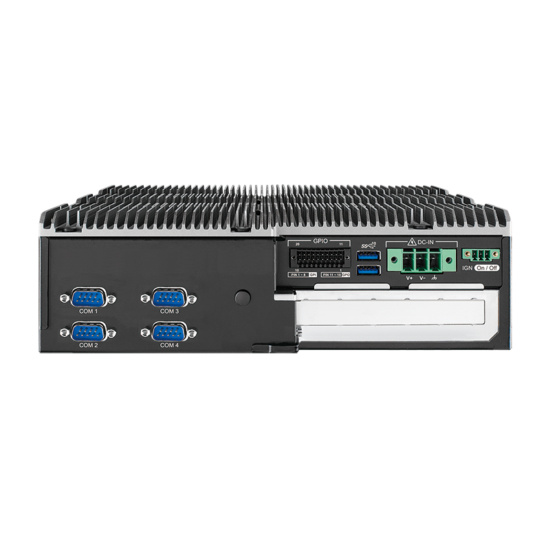

3100 = without extra LAN. 16 GPIO.

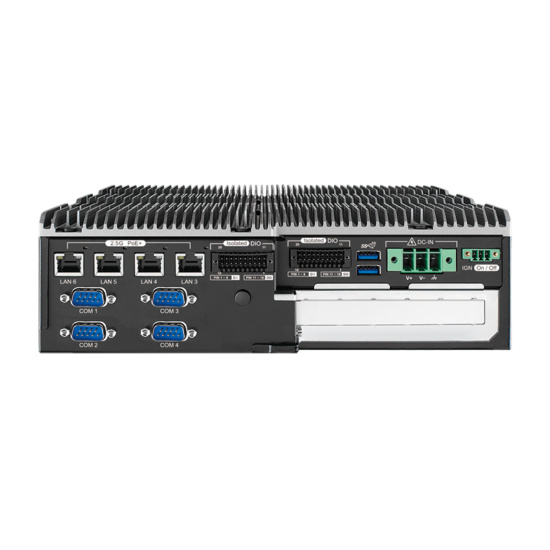

3200 = with 4x RJ45 LAN. 32 DIO.

3200MX = with 4x M12 LAN. 32 DIO.
