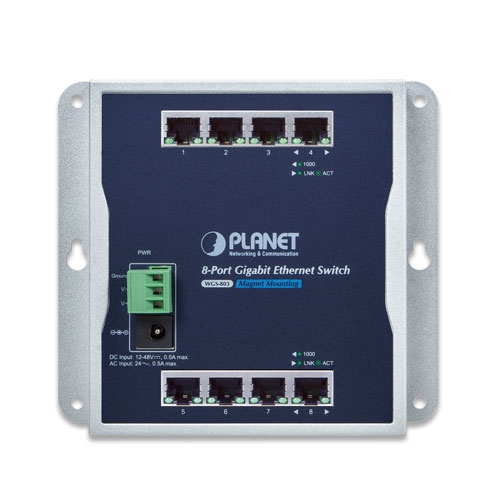

WGS-803

• Building / Home automation network
• Internet of things (IoT)
• IP surveillance and wireless

The WGS-803 is able to operate reliably, stably and quietly in any environment without affecting its performance, and provides a quick, safe and easy deployment of home automation network.

Physical Port

• 8-port 10/100/1000BASE-TGigabit RJ45 copper

Layer 2 Features

• High performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 9K jumbo frame supported in 1000Mbps duplex mode
• Automatic address learning and address aging

Industrial Case / Installation

• Compact size, wall-mounted, magnetic wall mount and DIN-rail design
• IP30 metal chassis
• Supports -10 to 60 degrees C operating temperature
• Supports EFT 6000VDC protection for power line
• Supports ESD 6000VDC Ethernet protection
• 12V~48V DC input range for booting with polarity reverse protect function
