VC-203PT

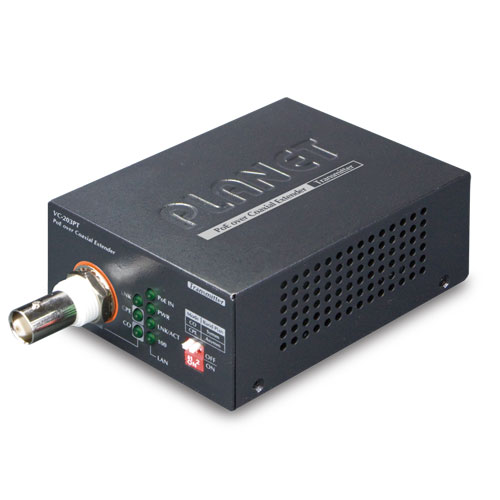

• VC-203PT: 1-Port 10/100TX PoE PD + 1-Port BNC PoE over Coaxial PSE Extender – Transmitter
• VC-203PR: 1-Port 10/100TX PoE PSE + 1-Port BNC PoE over Coaxial PD Extender – Receiver

The VC-203PT and VC-203PR extenders are one perfect combined solution for extending data and power transmissions over long distances for places like warehouses, parking lots, campuses, casinos, and many more. They can operate stably under temperature range from -40 to 75 degrees C which enables the users to conveniently apply the device in almost any location of the network.

Physical Port

• 1 x 10/100Base-TX RJ-45 copper interface (PoE IN)
• 1 x BNC connector (Power and data transmitter)

Power over Ethernet

• Eliminates Power cabling with PoE over Coaxial
• Ethernet over coaxial up to 1km with 5C2V/RG6 75Ωcable
• Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet on RJ-45 port
• Supports PoE Power up to 30.8 watts (Varying with Power Source and Coaxial Distance)

Layer 2 Features

• Supports auto-negotiation and 10/100Mbps half / full duplex
• Prevents packet loss with back pressure (half duplex) and IEEE 802.3x pause frame flow control (full duplex)

VDSL2 Features

• One box design, Master / Slave selectable via DIP Switch
• Defines asymmetric (Band Plan 998) and symmetric band plans for the transmission of upstream and downstream signals

Industrial Case / Installation

• Supports extensive LED indicators for network diagnostics
• IP30 metal case protection
• Flexible power source either extemal DC or PoE power input
• Supports EFT protection 2000 VDC for power line
• Supports2000VDC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
