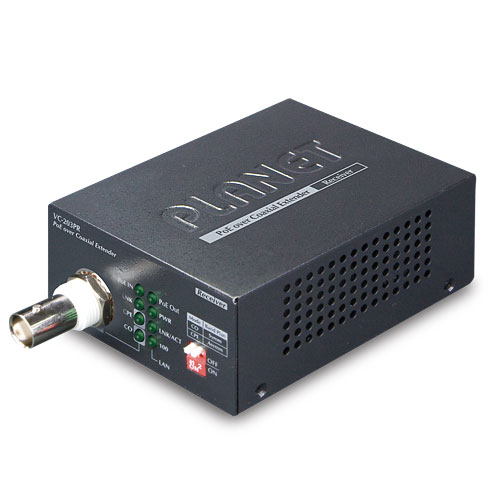

VC-203PR

• VC-203PT: 1-Port 10/100TX PoE PD + 1-Port BNC PoE over Coaxial PSE Extender – Transmitter
• VC-203PR: 1-Port 10/100TX PoE PSE + 1-Port BNC PoE over Coaxial PD Extender – Receiver

The VC-203PT, which functions with the VC-203PR, can split into several kinds of combinations. The VC-203PT can power by either from external DC power adapter or high power PoE switch. The power output of the VC-203PR is selectable – PoE output to the PoE Power Devices (PD) OR DC power output to the non-PoE devices.
Type 1 – VC-203PT with 52~56V power adapter and VC-203PR with PoE power output

Physical Port

• 1 x 10/100Base-TX RJ-45 copper interface (802.3at/af PoE Out)
• 1 x BNC connector (Power and data receiver)
• 1 x 2 Pin Terminal Block for 12/24V DC output

Power over Ethernet

• Supports Power over Ethernet PD, PoE Injector and PoE Splitter
• Eliminates power cabling with PoE over Coaxial
• Ethernet over coaxial up to 1km with 5C2V/RG6 75Ωcable
• Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet on RJ-45 port
• Supports PoE Power up to 30.8 watts (Vary on Power Source and Coaxial Distance)
• Auto detects remote powered device (PD)
• Supports adjustable two different output voltage options (12V / 24V) to fit various non-PoE devices

Layer 2 Features

• Supports auto-negotiation and 10/100Mbps half / full duplex
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)

VDSL2 Features

• One box design, Master / Slave selectable via DIP Switch
• Defines Asymmetric (Band Plan 998) and Symmetric band plans for the transmission of Upstream and Downstream signals

Industrial Case / Installation

• Supports extensive LED indicators for network diagnostics
• IP30 metal case protection
• Compact size, DIN rail and wall mount design
• Power Input: External DC or PoC (Power over Coaxial) power input
• Supports EFT2000V DC protection for power line
• Supports ESD2000V DC Ethernet protection
• -40 to 75 degrees C operating temperature
