POE-175-95

• PTZ speed dome camera
• All-in-one touch PC
• Remote digital signage display
• Other network devices that need higher power to work normally

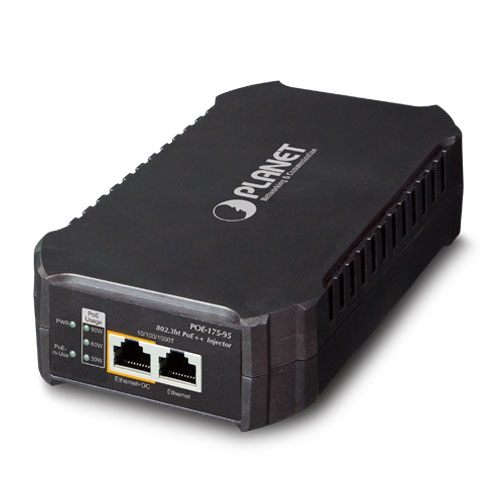

The POE-175-95 delivers the Ethernet digital data with 54V DC power over the twisted-pair cables as a 95-watt Power over Ethernet Injector, and the connected ultra Power over Ethernet splitter, the POE-172S, will separate the digital data and the power into three optional outputs (12V/19V/24V DC) with distance up to 100 meters.

Interface

• 2 RJ45 interfaces
  • 1-port Data + Power output
  • 1-port Data input
• 1 AC 100~240V input power socket

Power over Ethernet

• Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
• Supports PoE power up to 95 watts for PoE port
• Auto-detection of PoE IEEE 802.3at/bt equipment and devices from being damaged by incorrect installation
• Monitor the status of the total PoE usage in real time
• Remote power feeding up to 100m

Hardware

• All-in-one compact size design
• Internal power supply
• LED indicators for Power LED, PoE Usage LED and PoE-in-Use LED
• Wall-mount design
