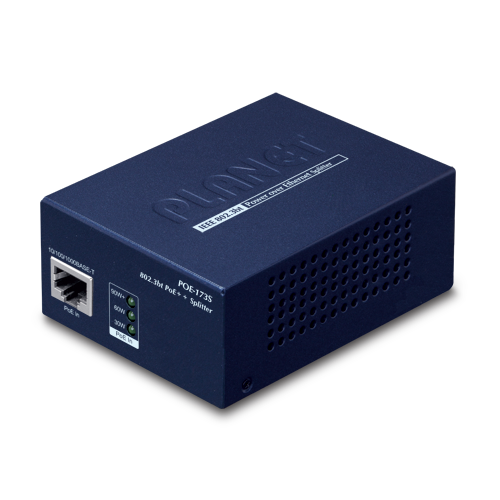

POE-173S

• PTZ speed dome camera
• Thin client
• AIO (All-in-One) touch PC
• Remote digital signage display
• Non-PoE network devices that need higher power to work normally

The POE-173S frees the network device deployment from restrictions of power outlet locations, thus eliminating the costs for additional AC wiring and reducing the installation time.

Interface

• 2 RJ45 interfaces
  • 1-port data + power input
  • 1-port data output
• 1-port DC plug-in
• 1 12V/19V/24V DC DIP switch

Power over Ethernet

• Complies with 802.3bt Power over Ethernet end-span / mid-span PSE
• Compatible with IEEE 802.3bt PoE++
• Backward compatible with 802.3at PoE+ with up to 30-watt power output
• Splits the PoE power over RJ45 Ethernet cable into 12V/19V/24V DC output
• Distance up to 100 meters

Hardware

• Metal case
• All-in-one compact size design
• LED indicator for PoE in
• Three-mode (12V/19V/24V) DC output DIP switch
• Supports high Surge/ESD protection
• Desktop, wall-mount or DIN-rail (optional) design
