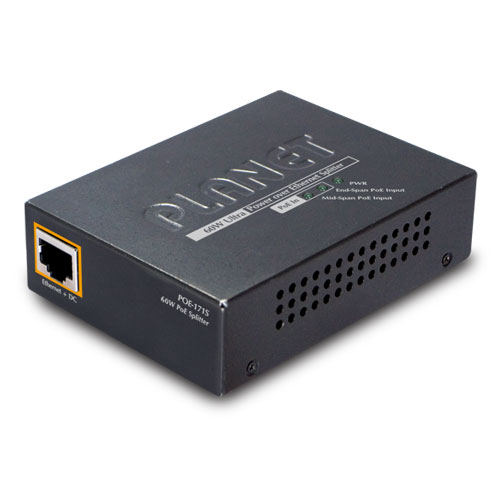

POE-171S

• PoE PTZ Speed Dome
• Other Network devices that need higher PoE power to work normally
• Thin-client
• AIO(All-in-One)touch PC
• Remote digital signage display

Interface

• 2-Port RJ-45 interfaces
• -1-Port Data + Power input

• – 1-Port Data output

• 1-Port DC output power socket
• 1 DC 12V/19V/24V DIP switch

Power over Ethernet

• Ultra Power over Ethernet End-Span / Mid-Span PSE
• IEEE 802.3at/af PoE standard compliant
• Compatible with All IEEE 802.3at/af Powered Devices
• Supports 56VDC, 50pwatt PoE power output
• Splits the 56V DC power over RJ-45 Ethernet cable into DC 12V/19V/24V output
• Remote power feeding up to 100 meters

Hardware

• Metal case
• All-in-one compact size design
• LED indicators for Power LED and POE input
• Three-mode DC output DIP switch for 12V/19V/24V

Standard Compliance

• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3at High Power over Ethernet
• IEEE 802.3af Power over Ethernet
• FCC Part 15 Class A, CE
