IGS-514PT

High Power PoE Solution for Harsh Industrial Network

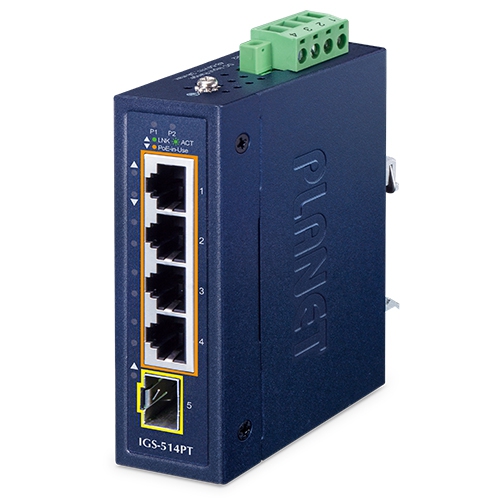

PLANET IGS-514PT is the smallest industrial-grade 4-Port PoE+ Switch in PLANET industrial PoE product lineup and is specially designed to be installed in a narrow environment. It provides up to 120-watt 802.3at PoE+ output capability and wire-speed Gigabit performance even in the harsh industrial environment. It comes with four 10/100/1000BASE-T 802.3at PoE+ ports and one 100/1000X SFP interface for uplink connection.

The power system of the IGS-514PT supports 48~54V DC power input for power redundancy and operational flexibility. It comes with a total power budget of up to 120 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.

Plug and Play High Power Sourcing Solution

Complying with the IEEE 802.3at Power over Ethernet Plus technology, the IGS-514PT provides up to 30 watts of PoE output power to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration. Furthermore, the IGS-514PT can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD devices which can be installed over more than 100 meters away. By daisy-chaining multiple PoE extenders, it offers the flexibility of doubling, tripling or quadrupling the distance of PoE network.
