Express-BASE6 R3.1

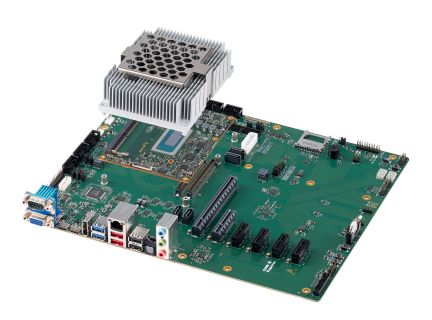

The Express-BASE6 R3.1 is an ATX-form-factor COM Express® Type 6 reference carrier board for COM-Express Type 6 Basic and Compact size modules. It is based on PICMG COM-Express Revision 3.1 and is designed to emulate end-product functionality for software development and hardware verification when used with off-the-shelf add-on cards.

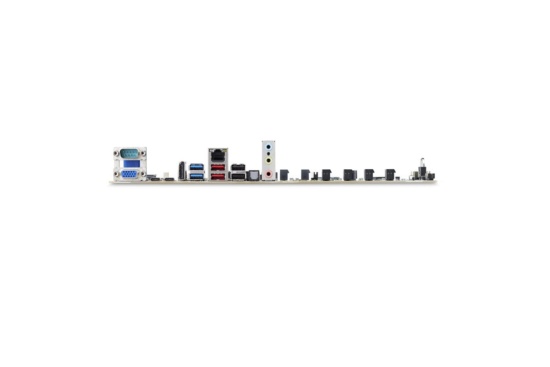

The board supports PCIe expansion, USB4, multiple display interfaces, SATA storage, 2.5GbE LAN, audio, and extensive I/O through rear connectors and internal headers. It includes onboard diagnostics for BIOS POST code data, a socket for secondary SPI flash, and uses an ATX 24+4 pin power input. PCIe Gen4 x16, 2.5GbE, and USB4 support depend on the module and carrier used.

A product by Adlink
