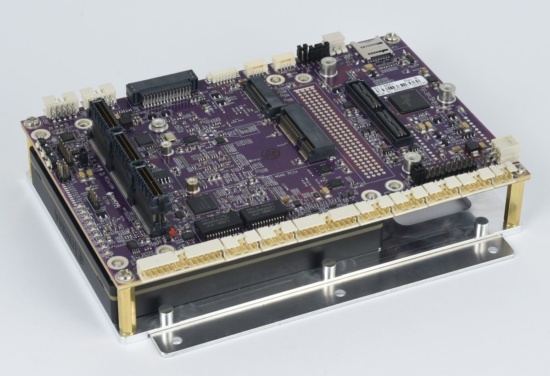

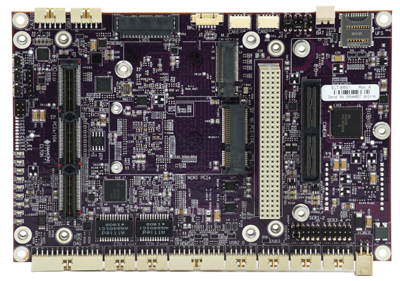

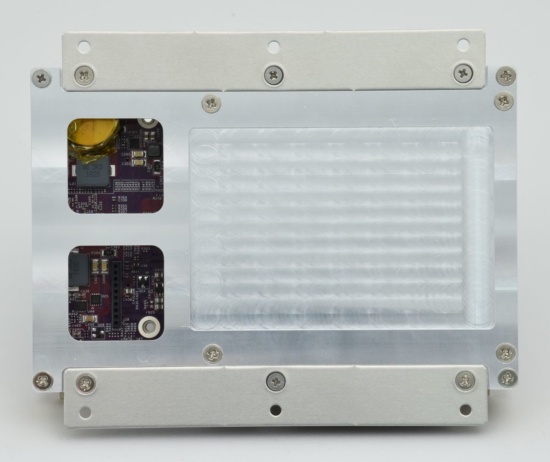

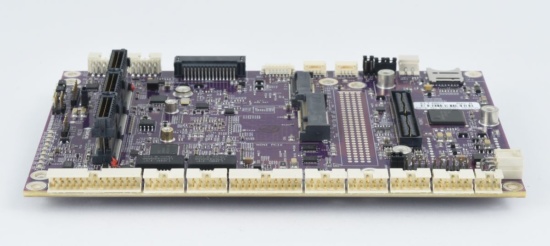

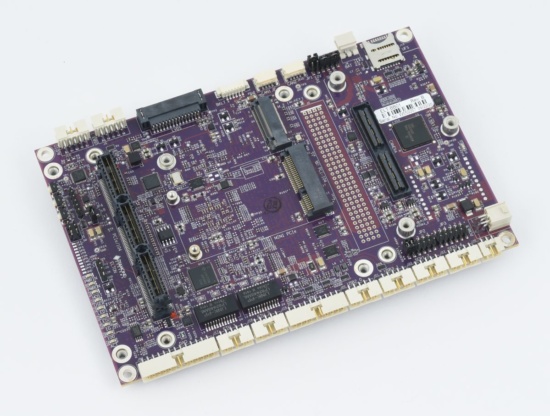

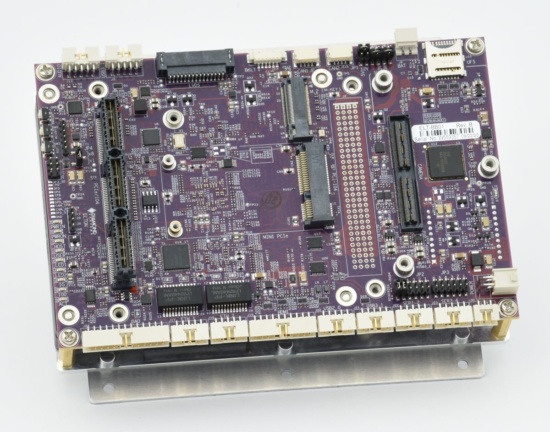

ELTON

• Size: 4" x 6.00" / 101.6 x 152.4mm
• Input voltage 9-20VDC

On-board features

• I/O breakout from Xavier board:
• 2x USB 3.1
• 2x USB 2.0
• 2x Gigabit Ethernet
• 1x HDMI
• 1x LVDS LCD
• 4x RS-232/RS485/RS422
• 2x CAN 1Mbps
• Audio
• SAM DAQ circuit:
• 6 12-bit A/D, 0-3.3V input range, up to 1MSPS sampling rate
• 2 12-bit D/A, 0-3.3V output range
• 13 GPIO, 3.3V logic levels

Socketed features

• Camera module connector supports up to 6x 2-lane CSI cameras
• UFS flash socket
• M.2 PCIe x4 socket (2242 size)
• 1x Nimbelink™ Skywire® modem socket
• PCI-104 Express expansion socket:
• PCI-104 connector for PCI bus
• 3-bank PCIe/104 Type 1 connector with 1x PCIe x8 and 4x PCIe x1
