COM-HPC Server Base

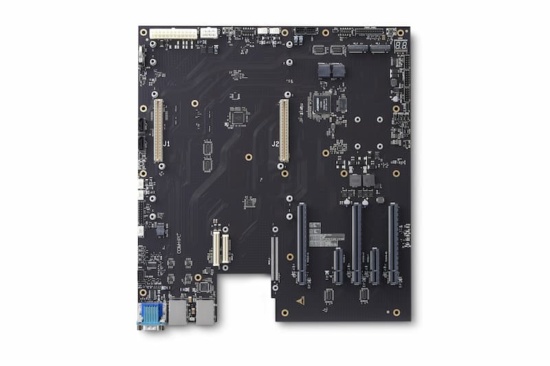

The COM-HPC Server Base is an extended ATX-size COM-HPC Server Type reference carrier board based on PICMG COM-HPC Revision 1.0. Combined with a COM-HPC Server Type module in Size E or D and standard off-the-shelf add-on cards, it allows rapid emulation of an end product for software development and hardware verification.

The board features three PCIe x16 slots and two PCIe x4 slots, plus two M.2 slots for NVMe SSDs. Rear I/O includes four USB 3.2 ports, one generic Ethernet, one COM, and VGA, along with remote management via IPMI BMC and dedicated Ethernet. Additional support includes four USB 3.0/2.0 ports and an optional 10GbE adapter card in OCP form factor. Internal headers provide connectivity for 12 GPIO, SMB, two I2C, GP_SPI, and IPMB, enabling flexible integration with other system components.

A product by Adlink
