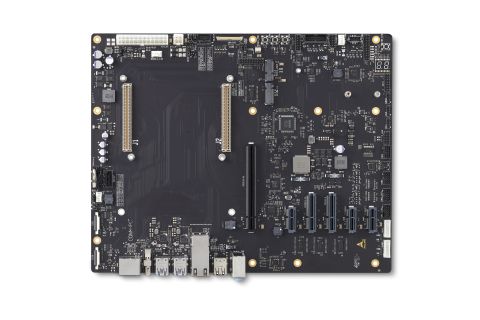

COM-HPC Client Base

The COM-HPC Client Base is an ATX-form-factor reference carrier board based on PICMG COM-HPC Revision 1.0.

It supports COM-HPC Client Type modules in Sizes A, B, or C and is intended to emulate the functionality of a desired end product for software development and hardware verification using off-the-shelf add-on cards. The board includes multiple PCIe slots, display interfaces (HDMI, DisplayPort, eDP/DSI, and MIPI-CSI), M.2 slots for NVMe SSD and Wi-Fi/Bluetooth, USB 4, USB 3.x, and USB 2.0 ports, generic Ethernet and COM ports, and headers for GPIO, SMB, I2C, and GP_SPI. It supports ATX or 12V AT power input and offers an optional 10GbE adapter card in OCP form factor.

A product by Adlink
