BOXER-8253AI

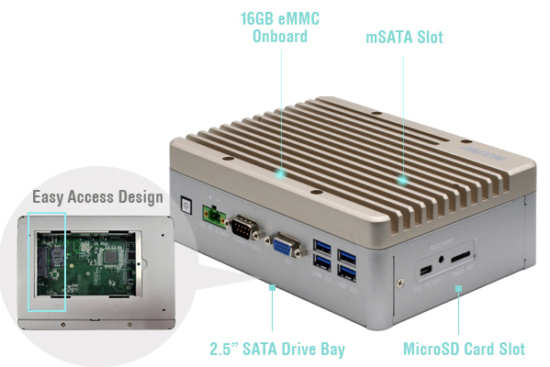

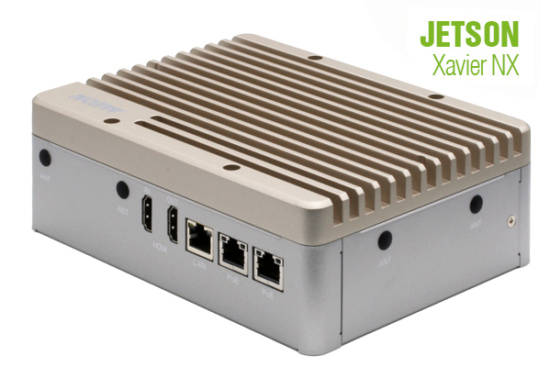

The BOXER-8253AI brings the power of the NVIDIA® Jetson Xavier™ NX and combines it with the flexibility of PoE PSE support and HDMI input. The NVIDIA Jetson Xavier NX SoC features a six-core 64-bit ARM processor, boasting 384 CUDA® cores, 48 Tensor Cores, and two NVDIA engines capable of running multiple neural networks in parallel, delivering accelerated computing performance up to 21 TOPS. The system provides 8GB onboard LPDDR4 memory and 16GM of onboard eMMC storage, which can be expanded using a microSD card, mSATA module, or a 2.5” SATA III (6.0 Gbps) drive that’s easy to install thanks to the quick access panel.

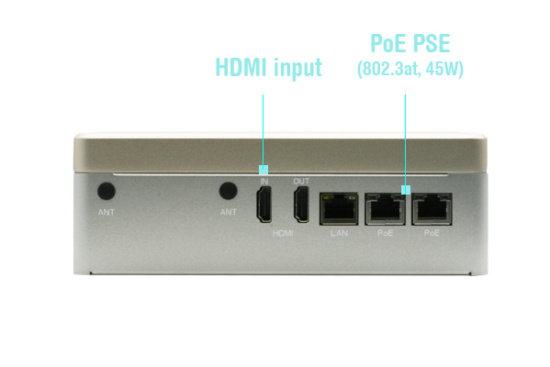

The BOXER-8253AI is designed with an I/O loadout to deliver flexible deployment for any application. The BOXER-8253AI features two PoE PSE ports (802.3af) delivering up to 45W total power. Additionally, the BOXER-8253AI brings new capabilities to the platform with HDMI input, allowing developers and users to quickly add AI powered visual analysis to a broad range of applications from NVR surveillance systems to security checkpoint X-ray scanners and medical devices.

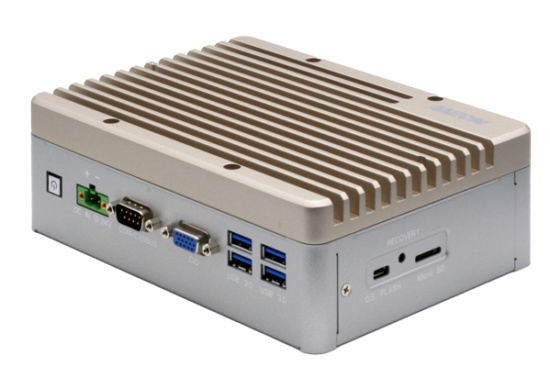

The BOXER-8253AI also offers expandability thanks to its Mini Card slot and M.2 2230 slot, allowing users and developers to quickly add on functionality such as Wi-Fi network support. The BOXER-8253AI still provides a flexible I/O loadout, including four USB3.2 Gen 2 ports, COM and DIO ports, designed to connect with a wide range and number of sensors, control devices and more.
