BOXER-6645-ADS

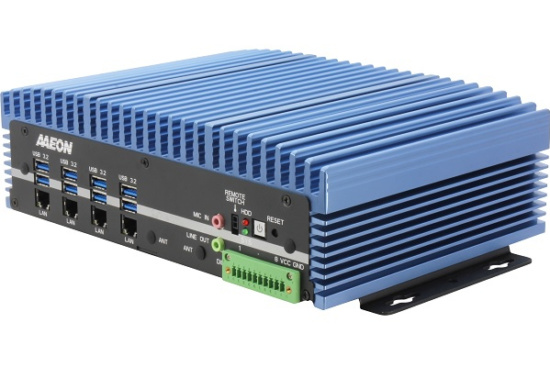

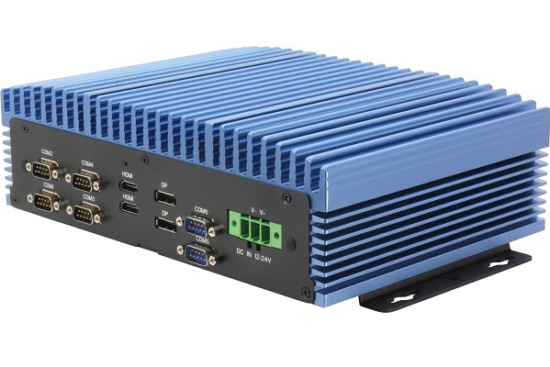

The BOXER-6645-ADS contains exceptional processing capabilities of up to 16 cores and 24 threads with 12th Generation Intel® Core™ i3/i5/i7/i9 Processor platforms, providing limitless potential for applications that demand high-performance computing, alongside a rich I/O featuring four independent display interfaces and multiple LAN ports within a rugged, fanless chassis.

A fanless chassis houses the product’s 65W CPU, which coupled with an operating temperature range of -4 F ~140°F (-20°C ~ 60°C) makes the BOXER-6645-ADS exceptionally durable. Adding to this are its wide 12~24V power input range, anti-shock, and anti-vibration features, which allow for continuous operation in the most extreme deployment environments.

The BOXER-6645-ADS is the most well-equipped embedded box PC available, with up to eight 10Gbps USB 3.2 Gen 2 slots for high-speed peripherals, four LAN ports for camera and sensor connectivity, and four independent display outputs, making the BOXER-6645-ADS conducive to applications such as traffic management control rooms. Additionally, it is the only PC of its kind with M.2 expansion capability, housing M.2 2230 and M.2 2252 slots to facilitate both Wi-Fi and 5G modules.

Alongside exceptional processing power, the BOXER-6645-ADS comes with a tapestry of integrated peripheral technologies, ranging from Intel® DL Boost to Intel® Iris® Xe Graphics to enable elite AI inferencing performance for smart city and Industry 4.0 solutions.

Hosting a dual-channel SODIMM slot supporting DDR5 4800MHz, the BOXER-6645-ADS is equipped with 64GB system memory, which offers a 50% increase in bandwidth, significantly boosting data rate transfer speed. Combined with the power of 12th Generation Intel Core processors, this enables real-time edge-server communication for IoT Gateway use.
