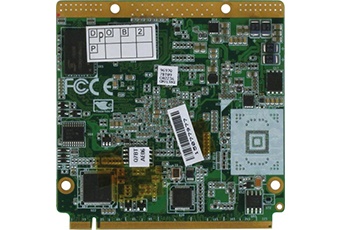

AQ7-BT Qseven CPU Module with Onboard Intel® Atom™ E3800 or Celeron® N2807 Product Family Processor SoC.
Measuring 70mm x 70mm, the AQ7-BT is a Qseven module with Qseven Rev.2.0 specification and equips Intel® Atom™ E3800 Series Processor SoC (and the N2807 Processor) with 2GB of onboard DDR3L memory.
It accommodates PCI-Express〔x1〕slots, SMBus, I2C bus, and SDIO interface for expansion; 18/24-bit single-channel LVDS and Digital Display Interface which can convert to DP/HDMI or other gital display format (may need certain bridge IC); Intel®‘s I211/I210 for Ethernet (depending on SKU); and USB 3.0/2.0, SATA II, and serial ports for I/O.
Users may also acquire AAEON’s ECB-970 carrier board separately for evaluating and testing the module.
