POE-173

• POE-173: 60-watt Ultra Power over Ethernet Injector
• POE-171S: 12V / 19V / 24V DC Power over Ethernet Splitter

Quick and Easy Gigabit Ultra Power PoE Network Deployment

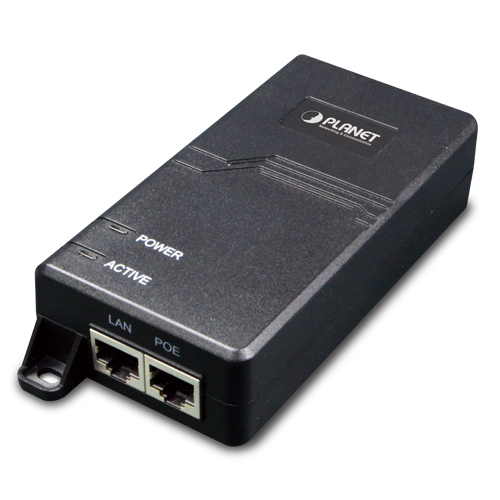

The POE-173 is aSingle-Port, Ultra Power over Ethernet Injectorwith a maximum of up to60 wattsof power output over Ethernet cables. It is designed specifically to meet the demand for growing higher power required network equipment such as:

• PTZ Speed Dome
• AIO(All-in-One) touch PC
• Remote digital signage display
• Other network devices that need higher power to work normally.

The POE-173 delivers the Ethernet digital data with DC 50V power over the twisted pair cables as a 60-watt Power over Ethernet Injector, and the connected Ultra Power over Ethernet splitter – the POE-171S – will separate the digital data and the power into three optional outputs(12V / 19V / 24V DC)with distance up to 100 meters.

Interface

• 2 x RJ-45 interfaces
  • – 1-Port 10/100/1000Mbps Data + Power output- 1-Port 10/100/1000Mbps Data input
• 1 x AC 100-240V input power socket

Power over Ethernet

• Ultra Power over Ethernet PSE
• Up to 60 watts of power on 4-pairs UTP
• Backward compatible with IEEE 802.3at/af PD device
• Auto-detection of PoE IEEE 802.3at/af equipment and devices from being damaged by incorrect installation
• Remote power feeding up to 100m

Hardware

• All-in-one compact size design
• Internal power supply
• LED indicators for Power LED and Active LED (PoE ready / In-use)
