ARES-WHI0
Powered by the 3rd Generation Intel® Xeon® Scalable Processors (formerly Ice Lake-SP), the ARES-WHI0...

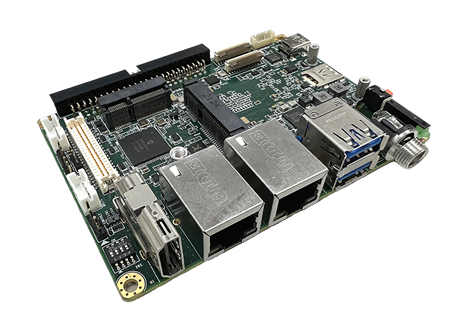

Read morepITX-MX8M-PLUS features NXP i.MX8M Plus quad cores 1.8GHz ARM Cortex-A53 and 800MHz real-time Cortex-M7 co-processor. It is capable of providing outstanding Edge AI inference at 2.3 TOPS to perform machine learning inference directly on the edge, reducing cloud dependency, latency and is able to perform highly complex neural network functions like face and emotion detection, object detection and surveillance, which are key to applications such as smart and safe cities, retail, smart home and much more.
Upon the standard I/Os on the coastline, pITX-MX8M-Plus also offers the possibility of I/O Extension on the rear side by a 50-pin 2.00mm box header (EIO50) to provide flexible I/Os like more USB, I2C, RS232/285, SPI and CAN for your specific vertical requirements. In addition to that, an M.2 and mini-PCIe connectors on board make the WiFi and 4G/5G fuctions ready to use.
