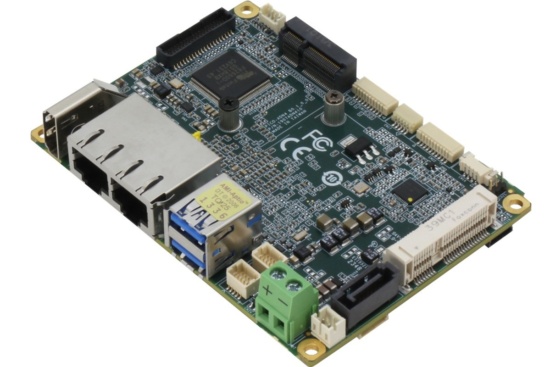

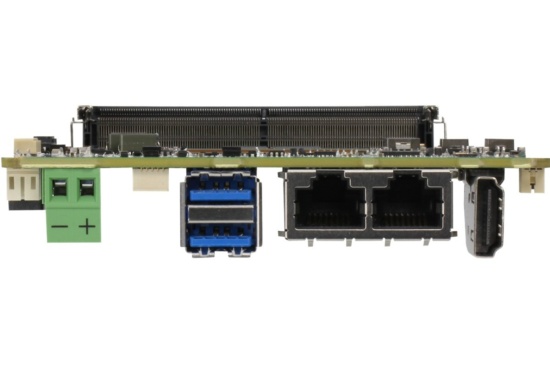

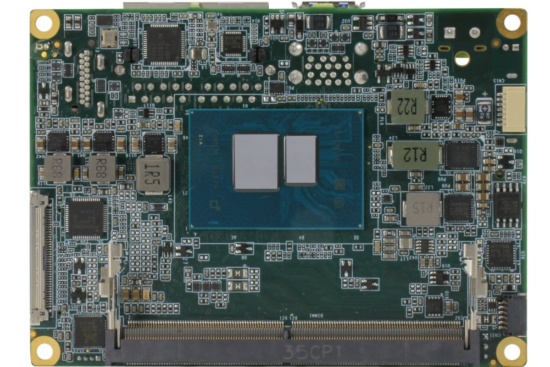

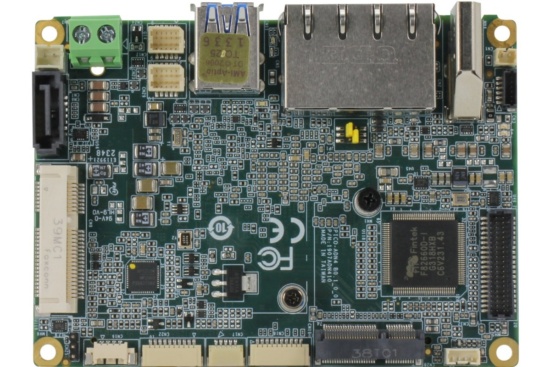

PICO-TWL4 REV.B

The PICO-TWL4 REV.B features Intel® Processor N150 and Intel® Core™ 3 Processor N355 options, with support for up to 16GB DDR5 4800MHz in a single SODIMM slot. It offers HDMI 1.4 and eDP 1.4b/LVDS for display output, along with dual Ethernet ports: a 2.5GbE Intel® I226 and a 1GbE Realtek RTL8111H.

For expansion, the board includes full-size mSATA/mPCIe and M.2 2230 E-Key slots. Connectivity is provided through USB 3.2 Gen2[x1] x2, USB 2.0 x4, plus two RS-232/422/485 and two RS-232 ports. Additional features include TPM 2.0, SATA 6Gb/s, 4-bit GPIO, and SMBus/I2C.

A product by AAEON
