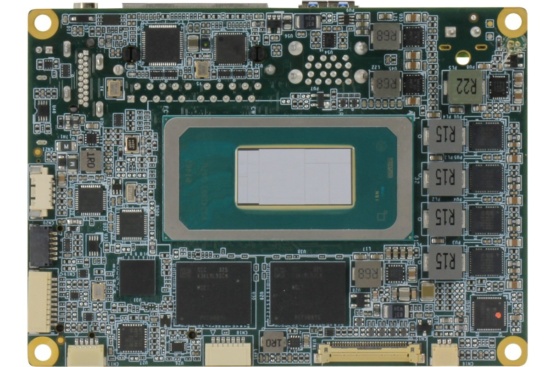

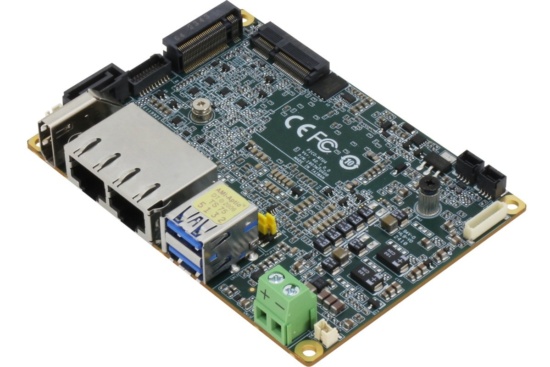

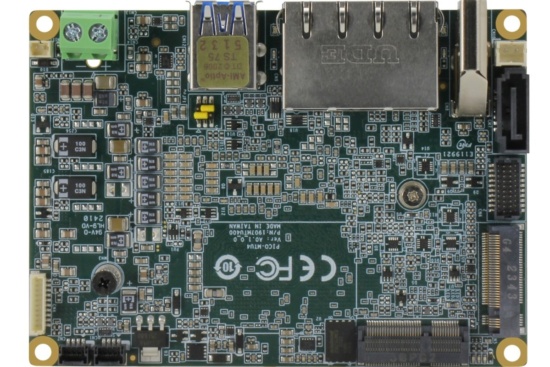

PICO-ARU4

The PICO-ARU4 is a Pico-ITX board powered by Intel® Core™ Ultra Processors (Series 2), with onboard LPDDR5 memory supporting up to 32GB. It offers versatile networking with 2.5GbE and 1GbE Ethernet ports, and flexible display options through HDMI 1.4 and eDP 1.4.

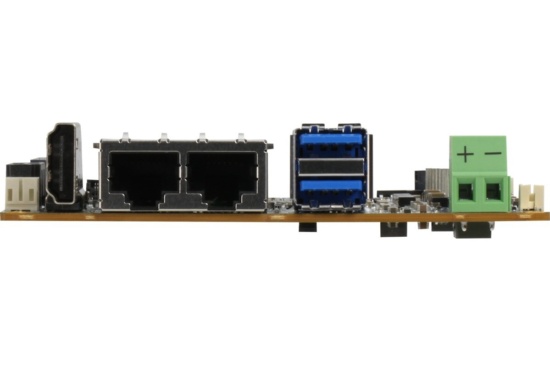

For storage and expansion, the board includes an M.2 2280 M-Key slot supporting PCIe 4.0 [x4] and SATA, as well as an M.2 2230 E-Key slot supporting PCIe 4.0 [x1] and USB 2.0. USB connectivity is provided with two USB 3.2 Gen 2 ports and two USB 2.0 ports, while serial communication is covered by two RS-232/422/485 ports.

Additional features include TPM, 4-bit GPIO, a SATA 6Gb/s port, and SMBus/I2C, with support for Intel® AMT.

A product by AAEON
