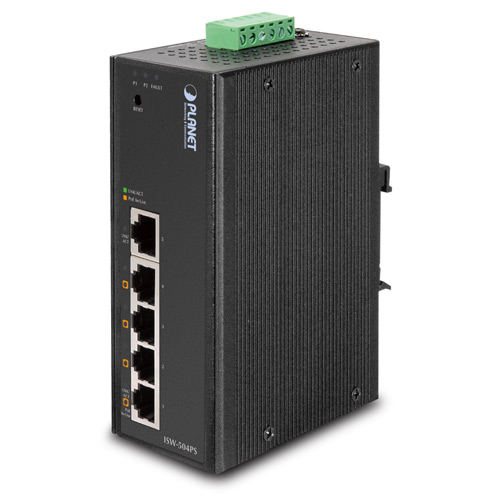

ISW-504PS

Physical Port
• 5-port 10/100Mbps RJ-45 with auto MDI/MDI-X function
• 4-port support 48V DC power to PoE Powered Device (Port-1 to Port-4)

IEEE 802.3af PoE
• Complies with IEEE 802.3af Power over Ethernet End-Span PSE
• Up to 4 IEEE 802.3af devices powered
• Supports PoE Power up to 15.4 watts for each PoE port
• Auto detect powered device (PD)
• Circuit protection prevent power interference between ports
• Remote power feeding up to 100m

PoE Management
• Total PoE Power Budget Control
• Enable / Disable PoE Function on each port
• PoE port Power Feeding priority
• Power limit on PoE port
• PD Classification Detection

Web Management
• Web interface for remote management
• Firmware upgrade through Web interface
• Planet Smart Discovery utility automatically finds Planet devices on the network
• SNMP Trap for alarm notification of events
• VLAN and QoS configuration

Layer 2 Features
• Supports auto negotiation and 10/100Mbps half / full duplex and auto MDI/MDI-X
• High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets
to optimize the network bandwidth
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Automatic address learning and address aging
• Integrated address look-up engine, supports 1K absolute MAC addresses
• CSMA/CD Protocol

Industrial Case / Installation
• IP30 aluminum metal case protection
• DIN rail and wall mount design
• Redundant power design
• 24 or 48V DC, redundant power with polarity reverse protect function
• Supports EFT protection 6000V DC for power line
• Supports ESD 6000V DC Ethernet protection
• -10 to 60 degrees C operating temperature
