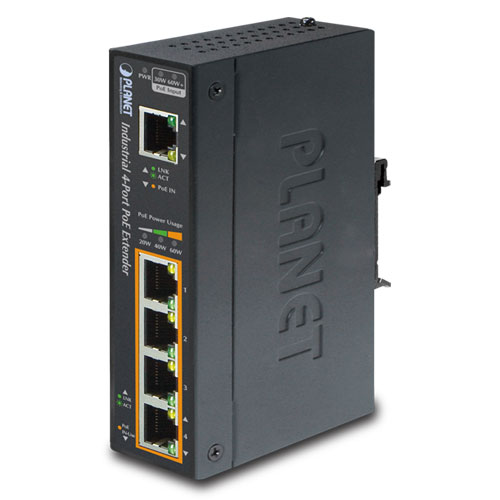

IPOE-E174

PLANET IPOE-E174 is an industrial 1-Port Ultra PoE (IEEE 802.3bt) to 4-Port 802.3af/at Gigabit PoE Extender designed especially for the point to multipoint PoE application. The IPOE-E174 can obtain a maximum of 75-watt PoE power from ultra PoE (IEEE 802.3bt) input port and supplies a maximum of 60-watt PoE power budget for 4 PoE output ports, extending both the reach ofGigabit Ethernet DataandIEEE 802.3at/802.3af Power over Ethernetover the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m where up to 4 powered devices (PDs) can be powered at the same time. The IPOE-E174 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

The IPOE-E174 industrial 1-Port Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender requires very little installation time and does not require any additional setup or programming by using standard RJ45 cable from power sourcing device, such as ultra PoE injector supplying ultra PoE power, to the IPOE-E174 and converting power for 4 powered devices that are IEEE 802.3af/at PoE standard compliant, meaning any additional power adapter for IP cameras and wireless access points is not necessary.

Physical Port

A Product by Planet
