IPOE-173S

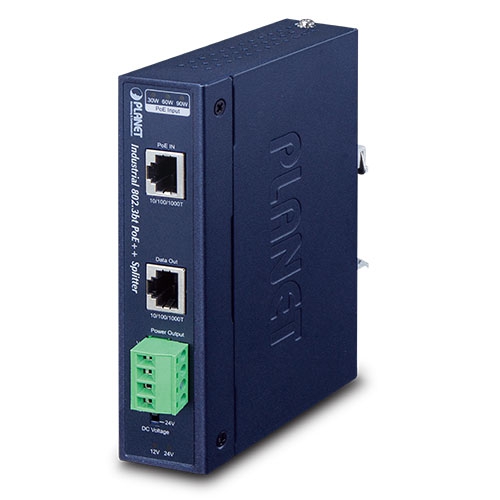

Planet IPOE-173S is an Industrial-grade 802.3bt Power over Ethernet Splitter which delivers the Ethernet digital data and PoE power from an 802.3bt PoE++ type-4 PSE (power source equipment) over an UTP cable. It comes with a selectable 12V or 24V DC DIP switch, enabling to deliver a maximum of 70-watt power output to a non-PoE powered Ethernet device. It supports passive 10/100/1000Mbps Ethernet connection and distance up to 100 meters. To fulfill the growing industrial applications, the IPOE-173S is designed to work under the operating temperature range from -40 to 75 degrees C. The IPOE-173S is an ideal solution to transfer power to a traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment.

If the existing network deployment consists of non-PoE powered devices that require high power to function, the IPOE-173S, powered by an ultra PoE power sourcing equipment, is able to feed the PDs with 802.3bt PoE++ as the splitter can split the data and power into two streams. The PDs gets their power through the splitter’s DC jack and the RJ45 interface accepts only Ethernet data. The following non-PoE PDs can be turned into an PoE++ environment with the IPOE-173S:
