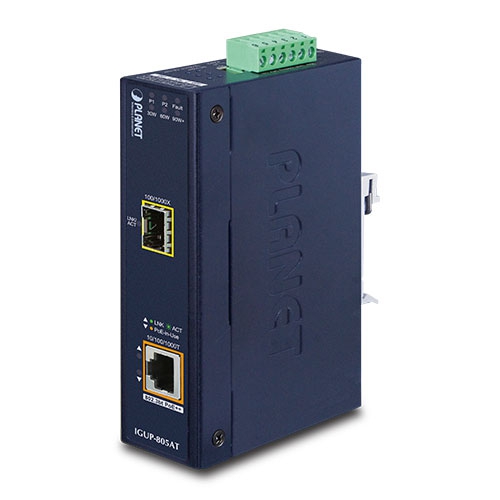

IGUP-805AT

• One SFP slot supporting 100BASE-FX/1000BASE-X multi/single mode SFP module and transmission distance up to 120km (Varying on SFP module)

With the long fiber distance support, the IGUP-805AT still sustains the transmission performance as high as 1000Mbps. It works in the high-performance Store and Forward mechanism, and also can prevent packet loss with IEEE 802.3x flow control. Furthermore, it can immediately alarm the administrators the issue from the link media and provide efficient solution to monitor the network power usage.

Physical Port

• 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3bt PoE Injector function
• 1 SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver dual mode

Power over Ethernet

• Complies with IEEE 802.3bt PoE++ Type-4 PSE
• Backward compatible with IEEE 802.3af/at PoE+ standard
• 1 IEEE 802.3af/at/bt device powered
• Supports PoE Power up to 95 watts for PoE port
• Provides DC 55V power over RJ45 Ethernet cable to PD with Ethernet port
• Auto-detects IEEE 802.3bt equipment and protects devices from being damaged by incorrect installation
• Remote power feeding up to 100m
• IEEE 802.3af/at/bt splitter devices compatible

Layer 2 Features

• Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode on RJ45 port
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)

Hardware

• LED Indicators
  • System: Power 1, Power 2, Fault and PoE usage
  • Fiber port: LNK/ACT
  • 10/100/1000BASE-T port: LNK/ACT, PoE-in-use
• DIP switch 1: LFPP (Link Fault Passthrough PoE Control) On/Off
• DIP switch 2: Standard (BT)/Legacy (POH) mode selection

Industrial Case and Installation

• IP30 metal case
• DIN-rail and wall-mount designs
• 12 ~ 56V DC redundant power with reverse polarity protection and connective removable terminal block for master and slave power
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
