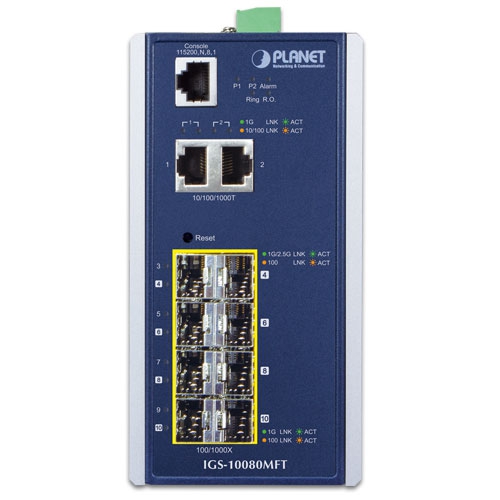

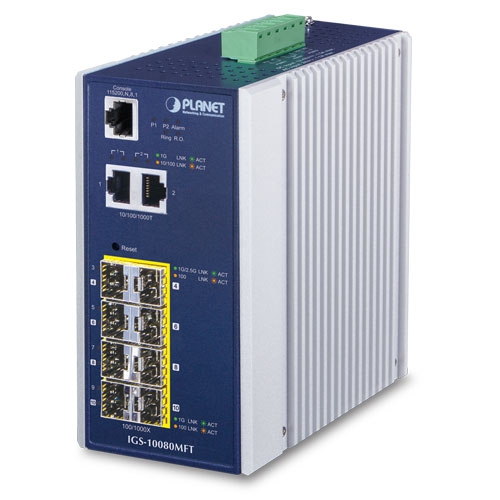

IGS-10080MFT

• 10/100/1000BASE-T Ethernet ports (Ports 1 to 2)
• 2 100/1000/2500BASE-X SFP ports (Ports 3 to 4)
• 6 100/1000BASE-X SFP ports (Ports 5 to 10)

Industrial Case and Installation

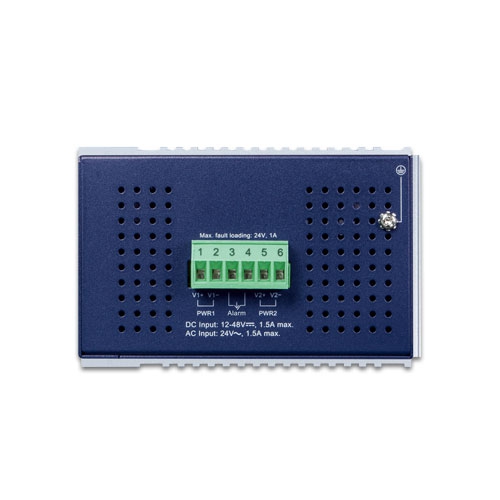

• Redundant power design
  • 12 to 48V DC, redundant power with reverse polarity protection
  • AC 24V power adapter acceptable
  • Backup of catastrophic power failure on one supply
  • Fault tolerance and resilience
• IP30 aluminum case
• DIN-rail and wall-mount designs
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 degrees C operating temperature

Industrial Protocol

• Modbus TCP for real-time monitoring in SCADA system
• IEEE 1588v2 PTP Transparent clock mode (Precision Time Protocol)

Layer 2 Features

• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm Control support
  • Broadcast/Multicast/Unicast
• SupportsVLAN
  • IEEE 802.1Q tagged VLAN
  • Up to 4K VLANs groups, out of 4094 VLAN IDs
  • Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
  • Private VLAN Edge (PVE)
  • Protocol-based VLAN
  • MAC-based VLAN
  • Voice VLAN
  • GVRP (GARP VLAN Registration Protocol)
• SpanningSupportsTree Protocol
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
  • BPDU Guard
• SupportsLink Aggregation
  • 802.3ad Link Aggregation Control Protocol (LACP)
  • Cisco ether-channel (static trunk)
• Provides port mirror (many-to-1)
• Port mirroring to monitor the incoming or outgoing traffic on a particular port
• Loop protection to avoid broadcast loops
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices

Layer 3 IP Routing Features

• Supports maximum 32 static routes and route summarization

Quality of Service

• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8 priority queues on all switch ports
• Traffic classification
  • IEEE 802.1p CoS
  • IP TOS/DSCP/IP precedence
  • IP TCP/UDP port number
  • Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port
• Traffic-policing on the switch port
• DSCP remarking

Multicast

• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• Querier mode support
• IPv4 IGMP snooping port filtering
• IPv6 MLD snooping port filtering
• MVR (Multicast VLAN Registration)

Security

• Authentication
  • IEEE 802.1x port-based/MAC-based network access authentication
  • IEEE 802.1x authentication with guest VLAN
  • Built-in RADIUS client to cooperate with the RADIUS servers
  • RADIUS/TACACS+ users access authentication
  • Guest VLAN assigns clients to a restricted VLAN with limited services
• Access Control List
  • IP-based Access Control List (ACL)
  • MAC-based Access Control List (ACL)
• Source MAC/IP address binding
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder

Management

• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
  • Console and Telnet Command Line Interface
  • HTTP web switch management
  • SNMP v1 and v2c switch management
  • SSHv2, TLSv1.2 and SNMP v3 secure access
• SNMP Management
  • Four RMON groups (history, statistics, alarms, and events)
  • SNMP trap for interface Link Up and Link Down notification
• IPv6IP address/NTP/DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
  • Firmware upload/download via HTTP
  • Reset button for system reboot or reset to factory default
  • Dual images
• DHCP Relay
• DHCP Option 82
• DHCP Server
• User Privilege levels control
• Network Time Protocol (NTP)
• Network Diagnostic
  • SFP-DDM (Digital Diagnostic Monitor)
  • Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
  • ICMPv6/ICMPv4 remote ping
• SMTP/Syslog remote alarm
• System Log
• PLANET Smart Discovery Utility for deployment management
• PLANET NMS system and CloudViewer for deployment management
