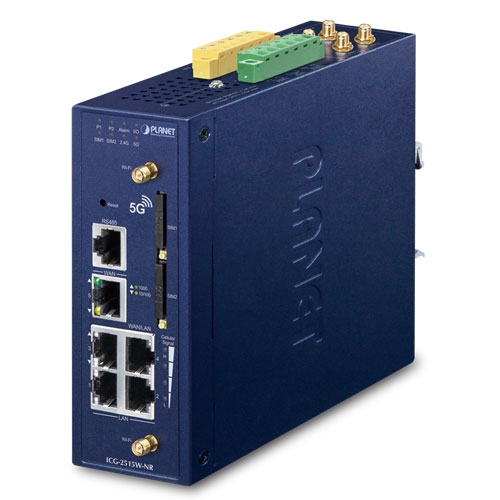

ICG-2515W-NR

• Global 5G NR (NSA/SA)/4G LTE network with dual SIM design for cellular network redundancy
• Automatic failover between 5G NR and Gigabit WAN
• Complies with IEEE 802.11ax and IEEE 802.11a/b/g/n/ac standards

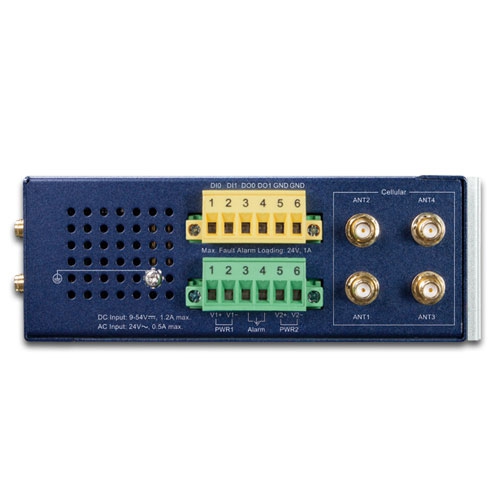

• 2 x DI/DO and 1 serial port (RS485) for Modbus applications
• SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
• Stateful packet inspection (SPI) firewall and content filtering
• Blocks DoS/DDOS attack, port range forwarding
• High Availability, AP Controller, Captive Portal and RADIUS
• Planet NMS controller system and CloudViewer app supported
• -45 to 75 degrees C operating temperature; DIN-rail and fanless designs

Hardware

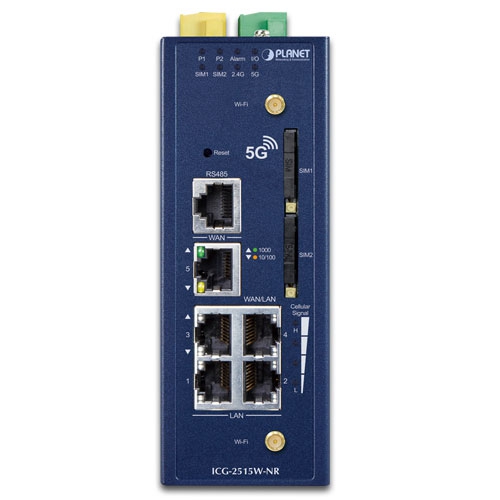

• 4 x 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
• 1 x 10/100/1000BASE-T RJ45 WAN port, auto-negotiation, auto MDI/MDI-X
• 4 x 5G NR antennas
• 2 x SIM card slots
• 1 x serial console port (RS485)
• 1 x reset button

Cellular Interface

• Supports multi-band connectivity with 5G NR (NSA/SA), LTE-FDD, LTE-TDD, and WCDMA
• Built-in SIM and broadband backup for network redundancy

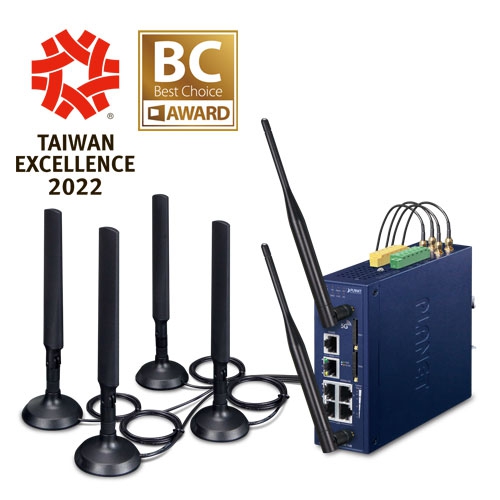

• Four detachable antennas for 5G NR connection
• LED indicators for signal strength and connection status

RF Interface Characteristics

• Features 2.4GHz (802.11b/g/n/ax) and 5GHz (802.11a/n/ac/ax) dual band for carrying high load traffic
• 2T2R MIMO technology for enhanced throughput and coverage
• Provides multiple adjustable transmit power control
• High speed up to 1.8Gbps (600Mbps for 2.4GHz or 1200Mbps for 5GHz) wireless data rate

IP Routing Feature

• Static Route
• Dynamic Route
• OSPF

Firewall Security

• Cybersecurity
• Stateful Packet Inspection (SPI) firewall
• Blocks DoS/DDoS attack
• Content Filtering
• MAC Filtering and IP Filtering
• NAT ALGs (Application Layer Gateway)
• Blocks SYN/ICMP Flooding

VPN Features

• IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
• Max. Connection Tunnel Entries: 60 VPN tunnels,
• Encryption methods: DES, 3DES, AES, AES-128/192/256
• Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512

Networking

• Outbound load balancing for Ethernet WANs
• Auto-failover between Ethernet WANs and cellular network
• High Availability
• Captive Portal
• RADIUS Server/Client
• Static IP/PPPoE/DHCP client for WAN
• DHCP server/NTP client for LAN
• Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
• Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
• MAC address clone
• DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP

Others

• Setup wizard
• Dashboard for real-time system overview
• Supported access by HTTP or HTTPS
• Auto reboot
• PLANET NMS System and Smart Discovery Utility for deployment management
• Planet CloudViewer App for real-time monitoring
