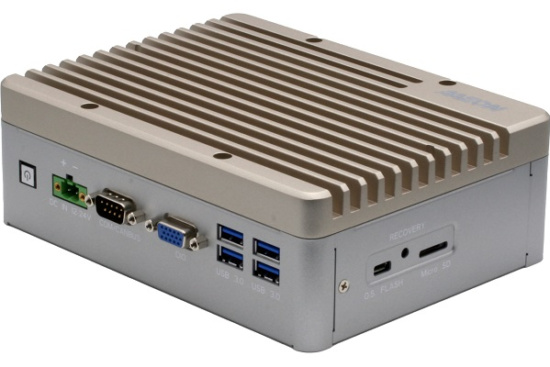

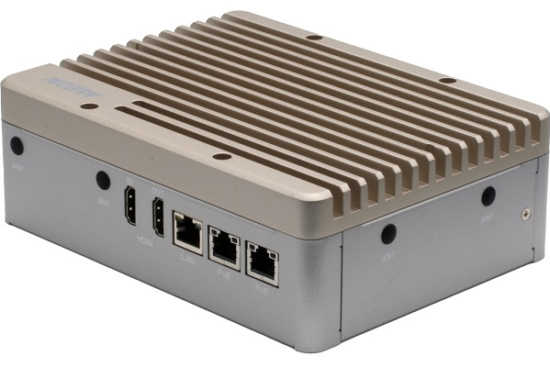

BOXER-8233AI

The BOXER-8233AI brings the innovative NVIDIA® Jetson™ TX2 NX (formerly Lanai) and combines it with the flexibility of PoE PSE support and HDMI input. The NVIDIA Jetson TX2 NX is powered by the dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex, offering 256 Cuda® Cores and 4GB of onboard LPDD4 memory. In total, this offers AI processing speeds up to 1.33 TFLOPS, offering performance that slots in perfectly between the Jetson Nano™ and Jetson Xavier™ NX.

The BOXER-8233AI offers greater flexibility to meet the needs of a wide range of applications. Storage comes thanks to 16GM of onboard eMMC storage, which can be expanded using a microSD card, mSATA module, or a 2.5” SATA III (6.0 Gbps) drive that’s easy to install thanks to the quick access panel. The BOXER-8233AI features two PoE PSE ports (802.3af) delivering up to 60W total power. Additionally, the BOXER-8233AI features HDMI input, allowing developers and users to quickly add AI powered visual analysis to a broad range of applications from NVR surveillance systems to security checkpoint X-ray scanners and medical devices.

The BOXER-8233AI also offers expandability thanks to its Mini Card slot and M.2 2230 slot, allowing users and developers to quickly add on functionality such as Wi-Fi network support. The BOXER-8233AI still provides a flexible I/O loadout, including four USB3.2 Gen 2 ports, COM and DIO ports, designed to connect with a wide range and number of sensors, control devices and more.
