New arrival

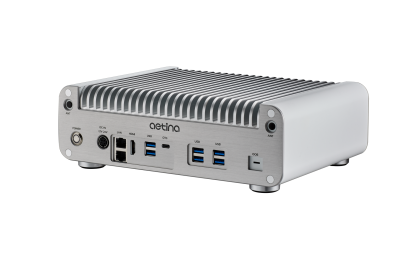

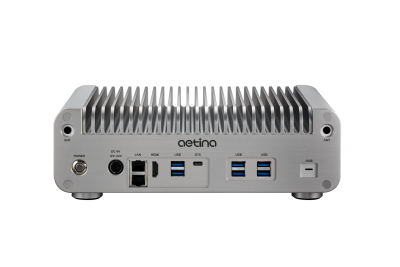

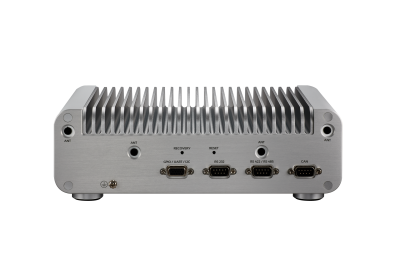

AIE-PO23/33-6USB | AIE-PN33/43-6USB

AIE-PO23/33-6USB | AIE-PN33/43-6USB

Spotting as a reliable and powerful AI inference device, the Aetina fanless and versatile expansion edge AI system–AIE-PN33/43-6USB is designed to incorporate 6 x USB 3.2 enable to support up to 6 USB camera connectivity. Coupled with versatile I/O and expansion options, it meets various needs of AI deployment. Powered by an NVIDIA® Jetson Orin™ NX, the AIE-PN33/43-6USB delivers up to 100 TOPS of AI performance and is also compatible with the NVIDIA® Jetson Orin Nano™ module, as demonstrated by our release of the AIE-PO23/33-6USB. Both systems offer users full bandwidth and power package to complement and scale video inputs for AI inference at the edge.

Up to 100 TOPS AI performance enables AI inference on the Edge
AIE-PN33/43-6USB and AIE-PO23/33-6USB are fully compatible with NVIDIA Jetson Orin NX and Orin Nano modules, delivering exceptional AI performance. Thanks to the 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores embedded in an NVIDIA Jetson Orin NX, AIE-PN33/43-6USB drives up to 100 TOPS AI performance for high-resolution data processing and real-time inferencing.

Comprehensive M.2 expansion and USB ports
AIE-PN33/43-6USB and AIE-PO23/33-6USB are fanless systems with high expansion ability, built-in 1x M.2 B-Key for LTE/5G, 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for NVMe expansion storage with fast data transmission. Its on-board 6 x USB 3.2 ports can supply a total of six USB type cameras or devices. By integrating with Aetina’s BSP and NVIDIA Jetpack toolkit supporting, both AIE-PN33/43-6USB and AIE-PO23/33-6USB are ideal for real-time visual inspection such as security alert, defect detection, AOI inspection, automatic high-resolution sorting.

Support EdgeEye for Device Remote Management
AIE-PN33/43-6USB and AIE-PO23/33-6USB ease remote management burdens through integrated support for EdgeEye. IT staff can use the EdgeEye cloud platform to monitor, control, and reboot distributed edge systems conveniently from a central management console.

A product by Aetina
